80-120tph stone crusher plant

80-120 tph stone crusher plant introduction

A set of 80-120 tons per hour crushing station consists of a series of crushing equipment, screening equipment, and conveying equipment, which crushes stones, concrete, etc. into building aggregates for construction and road construction. The specific equipment of this system includes ZSW38096 vibrating feeder, PE600900 jaw crusher, PF1214 impact crusher, and 3yk1860 vibrating screen.

80-120 tph Stone Crushing Plant Features

• This crushing station uses a two-stage crushing process to complete the entire crushing operation.
• The final size is 0-5mm, 5-20mm, 20-40mm as aggregate for construction.We can also adjust the process configuration according to the customer's finished material requirements.
• Applied material: limestone, granite, basalt, quartz, river stone,  ballast, quartz, gold ore, iron ore, andesite and so on.
•  High production efficiency, low cost, regular end product granularity, good grain shape, and low powder content. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant.
• We also design and provide stone crusher plant with capacity 80-120tph,150-200tph,300-500tph,500-800tph.

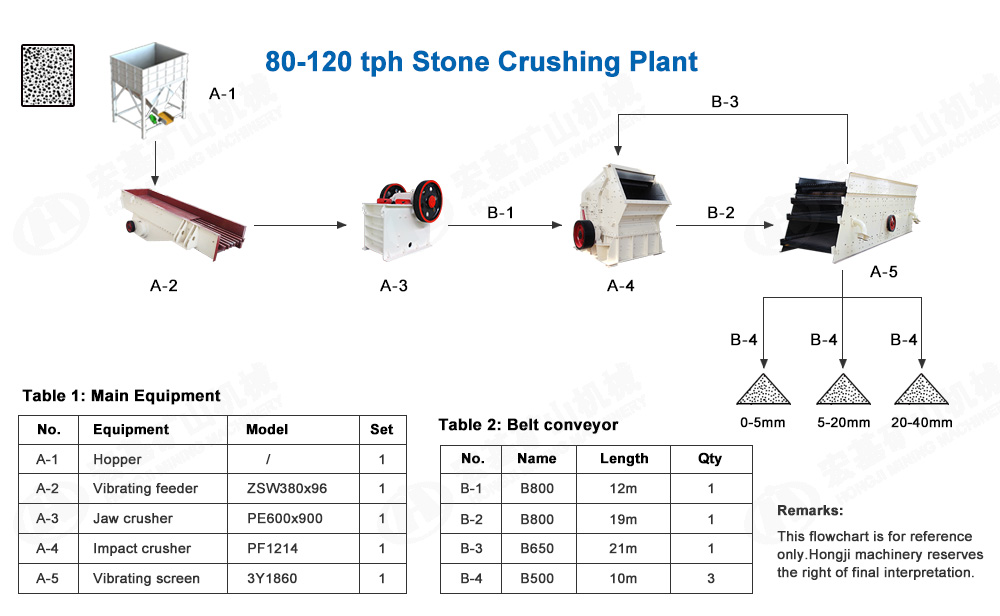

How does 80-120tph stone crushing plant works?

1. The bulk raw materials are fed into the jaw crusher through the vibrating feeder for coarse crushing.The material crushed by the jaw crusher is controlled to be below 300mm.
2. The coarsely crushed material is sent to the impact crusher by the belt conveyor for secondary crushing.
3. The final crushed material goes to vibrating screen to classified final products 0-5mm, 5-20mm, 20-40mm.
